LATERAL TRUNK SUPPORT

LATERAL TRUNK/PELVIC SUPPORT

A wide range of thoracic trunk supports are available for back supports. These include fixed and swing away options and arm styles with single or dual pads in multiple sizes. Pads are adjustable in angle, length and position. All supports are available with optional neoprene covers.

3 TYPES OF HARDWARE

FIXED – Lateral remains fixed in place for users that require permanent support.
SWING AWAY – Lateral can be adjusted around the hinge to set proper contact point with client, in addition “swings away” on a pivot point to allow for easier transfers, or a break from support.
SWING AWAY EXTENDABLE (available with standard laterals only) – Lateral has significantly more adjustability to ensure proper lateral or anterior lateral contact with the client, in addition “swings away” on a pivot point to allow for easier transfer, or a break from support.

5 TYPES OF PADS

SMALL – When minimal surface area of support is required - pad is approximately 3.5” deep x 3.25” high (8.9 x 8.3 cm).
SMALL DUAL ADJUSTABLE (for use on the Swing Away Extendable hardware only) – Angle between pads can be adjusted to fit the contour and provide customized contact with the client - each pad is approximately 3.5” deep x 3.25” high (8.9 x 8.3 cm).
LARGE – When more surface area of support is required - pad is approximately 4” deep x 3. 5” high (10.2 x 8.9 cm).

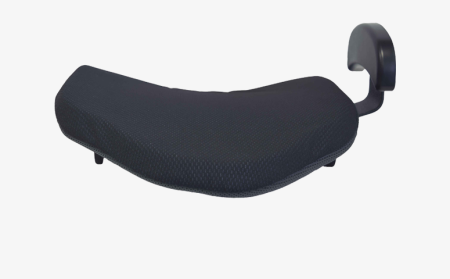

CONTOUR – When the client needs subtle lateral support added toa mild contoured back (offered in two depths, single pad or double pad) - each pad is approximately 2” deep x 5.5” high (5.1 x14.0 cm).
XL (Armadillo only) – Maximum depth to ensure support clears the back substrate while providing increase surface area for contact with client - pad is approximately 6.5” deep x 7.5” high (16.5 x 19.1 cm).

STANDARD LATERAL SUPPORTS

Short Fixed Arm with Small Pad

NLAFS-NLPHS

Short Fixed Arm with Large Pad

NLAFS-NLPHL

Short Swing-Away Arm with Small Pad

NLASS-NLPSS

Short Swing-Away Arm with Large Pad

NLASS-NLPSL

Extendable Swing-Away Arm with Large Pads

NLASA-NLPSL

Extendable Swing-Away Arm with Dual Small Pads

NLASA-NLPTSS

ARMADILLO LATERAL SUPPORTS

Fixed Arm with Small Pad

NMAPS-LPS

Fixed Arm with Dual Contoured Pad

NMAPS-LCS

Fixed Arm with X-Large Pad

NMAPS-DLTSF

Swing-Away Arm with X-Large Pad

NMAPS-DLTSS

More

LOOKING FOR MORE?

We offer a wide range of options, including lateral supports, head supports, and hardware.

LOOKING FOR A WHEELCHAIR BACK SUPPORT?

READY TO ORDER?

The NXT Cushions and Back Supports can be ordered through our wheelchair and NXT order forms or simply by reaching out to your local provider.
