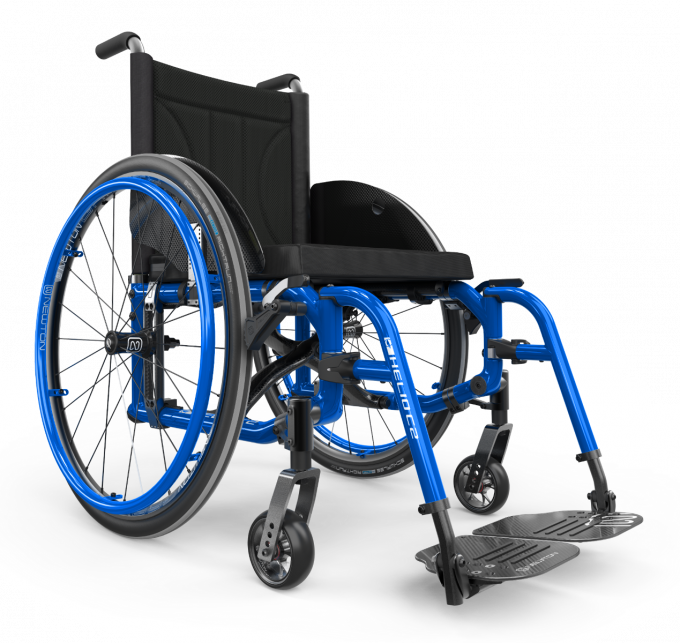

Carbon folding wheelchair
This flagship model is one of the lightest, most technologically advanced wheelchairs in its category. The HELIO C2 is the result of a series of innovations, it features revolutionary components, an impeccable finish and all the advantages carbon fiber offers.
Our vision for the HELIO C2 was significantly reduced weight and greater freedom of movement. Each component was carefully selected and carbon fiber was used for strength and lightness. The result is greater mobility as well as reduced chronic shoulder and joint injuries.
The symmetrical cross brace and rigid unibody frame distribute forces equally throughout the frame for superior energy transfer and propulsion. Our unique Ultrarigid Folding system (UFS) maximizes the chair’s overall stability, while the vertical axle plates increase rear wheel stiffness for optimal energy efficiency.
The frame’s innovative design allows you to achieve a super-low 12-inch (30.5-cm) front seat-to-floor height. In addition to easier contact with the floor, this feature provides better foot propulsion. Or, move it beyond 20 inches (50.8 cm) to meet your most challenging needs.
Because carbon fiber is both very strong and very light, it is an ideal material for making wheelchairs. It also has superior fatigue resistance and can withstand extreme temperatures. This ensures exceptional durability, for a chair that will serve you for many years to come.
The right customization solution can be life changing for wheelchair users. EVO Custom lets you find the best options to make your HELIO C2 an even better mobility solution for you.
Personalize your wheelchair to express your unique self by mixing and matching the color of your frame and handrims!
T700 high-tensile strength carbon fiber
One of the lightest and sturdiest material available, also renowned for its vibration damping properties.

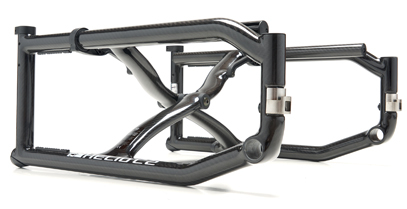

Rigid Unibody Frame
A unibody frame is much stronger and requires less maintenance than a standard two part frame. It also reduces weight while maximizing propulsion efficiency.
Symmetrical Molded Crossbrace 3D
Entirely symmetrical carbon fiber cross brace for reduced torsion and better energy distribution throughout the frame.
Ultrarigid Folding System
High-precision tolerances and oversized pivot axles for best-in-class propulsion efficiency.
Forged Vertical Axle plate
Offers the industry’s most precise rear wheel adjustability. The vertical mounting maximizes stability and responsiveness.

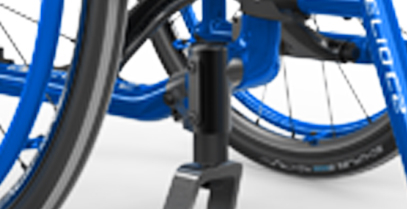

Evolve Caster Housing
Integrated into the frame for rock-solid durability, the Evolve caster housing offers easy and precise infinite adjustments.

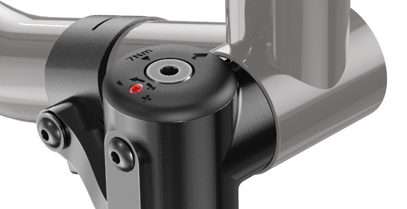

Anti-Flutter System
Minimize flutter with a simple twist of a screw. Provides a smooth, more efficient ride.
Newton Accessories
Parts and accessories designed to be lighter with improved functionality.
Frame
Folding
Material
High-tensile strength T700 carbon fiber
Transport Weight
9.5 lb. | 4.3 kg (16 × 16 without rear wheels, wheel locks, armrests, cushion, anti-tippers and footrest). Lightest configuration: 19.4 lb. | 8.8 kg (with wheel locks and wheels)
Weight Limit
265 lb. | 120 kg — 350 lb. | 159 kg - HD Kit
Seat width
14 in. to 22 in.
35.6 cm to 55.9 cm
Seat depth
14 in. to 20 in.
35.6 cm to 50.8 cm
Front seat to floor
13 in. to 21 ½ in.
33 cm to 54.6 cm
Rear seat to floor
12 ½ in. to 20 ¼ in.
31.8 cm to 51.4 cm
Back height
9 in. to 21 in.
22.9 cm to 53.3 cm
Armrest Height
6 in. to 14 in.
15.2 cm to 35.6 cm
Front frame angle
60°, 70°, 80°, 90°
Back angle
85° to 110°
Wheel camber
0°, 3°, 6°
Center of gravity
1 in. to 4 in.
2.5 cm to 10.2 cm
Overall width
20 ¾ in. min – 33 ½ in. max.
52.7 cm min – 85.1 cm max.
Patents 2594566, 8628108, 145600, D731366
Patent pending: 12876206.9, 2872080, 14/398624
