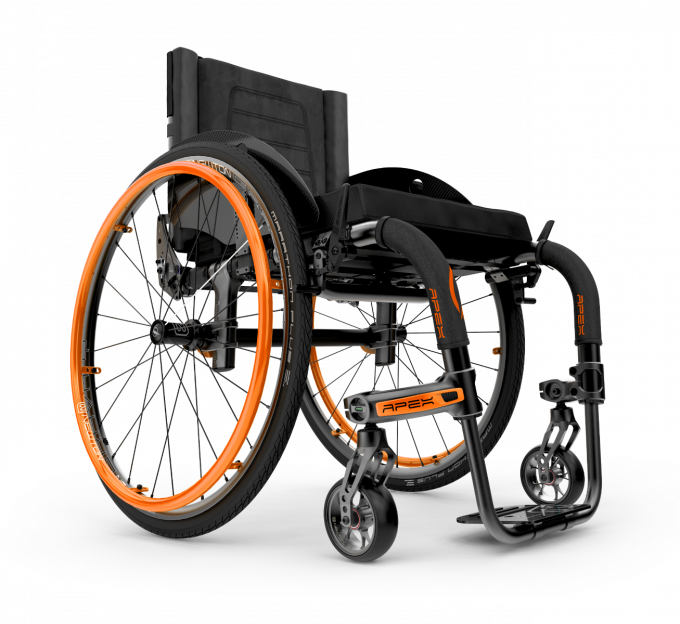

Apex A

APEX A

Aluminum rigid wheelchairs

NOTHING LESS THAN GREATER MOBILITY

The bold design and innovative approach behind the APEX Aluminum have redefined perceptions of rigid wheelchairs. The triple-butted aluminum and strategic touch of carbon fiber strike a perfect balance making this chair an example of modernity and lightness.

Benefits

Features

Features

*COLOR REPRESENTATION MAY VARY FROM ONE MONITOR TO ANOTHER. THEREFORE, THE ACTUAL PAINT COLOR ON YOUR WHEELCHAIR MIGHT DIFFER SLIGHTLY FROM WHAT YOU SEE ON YOUR SCREEN

ENDLESS COLOR COMBINATIONS!

Personalize your wheelchair to express your unique self by mixing and matching the color of your frame, accents and handrims!

Technologies

Stronger and lighter than 7005 aluminum.

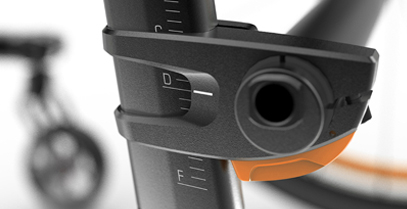

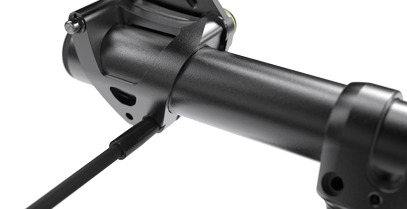

Patented modular system that enhances versatility and rear frame stiffness.

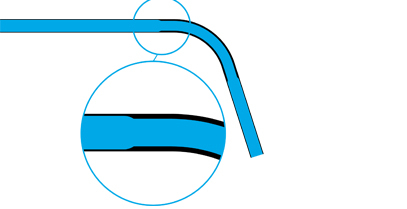

Reduces weight while maintaining strength. We put the strength where its counts!

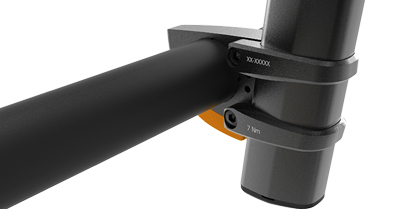

Provides a responsive ride without added weight.

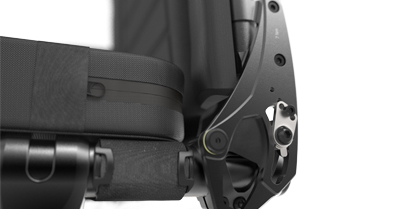

Allow for quick and easy symmetrical adjustments.

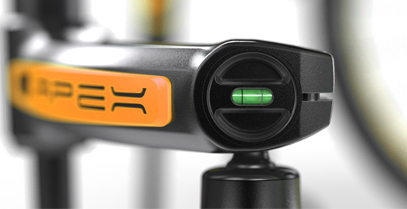

Built-in highly accurate and calibrated gauges make caster adjustments quick and precise.

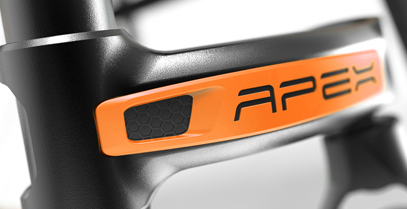

Parts and accessories designed to be lighter with improved functionality.

Technical specifications

structure

Frame

Rigid

Material

Triple-butted aluminum

Transport Weight

10.6 lb | 4.8 kg (16 x 16 without rear wheels, wheel locks, armrests, cushion and anti-tippers). Lightest configuration: 18.0 lb | 8.2 kg (with wheel locks and wheels).

Weight Limit

265 lb | 120 kg

dimensions

Seat width

12 in to 20 in
30.5 cm to 50.8 cm

Seat depth

12 in to 20 in
30.5 cm to 50.8 cm

Front seat to floor

14 in to 21 in
35.6 cm to 53.3 cm

Rear seat to floor

14 in to 20 in
35.6 cm to 50.8 cm

Back height

9 in to 21 in
22.9 cm to 53.3 cm

Armrest Height

6 in to 14 in
15.2 cm to 35.6 cm

Front frame angle

70°, 75°, 80°, 85°, 90°

Back angle

80° to 101°

Wheel camber

0°, 2°, 4°, 6°, 8°

Center of gravity

0 in to 6 in
0 cm to 15.2 cm

Overall width

18 ¾ in min. 31 ½ in max.
47.6 cm min. 80 cm max.

Resources and order forms

Brochures

APEX A brochure

Order forms

APEX-Orderform-USA-6.7

User manuals

APEX user manual
English
Spanish

Warranty

Limited warranty USA
English
Spanish

Patent pending PCT/CA2017/050275, PCT/CA2017/050274, 15/446640, PCT/CA2017/050276
