ZÜM AP / SP

MOBILE SHOWER COMMODE CHAIR WITH OPTIONAL TRAVEL KIT

Raz Mobile Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.

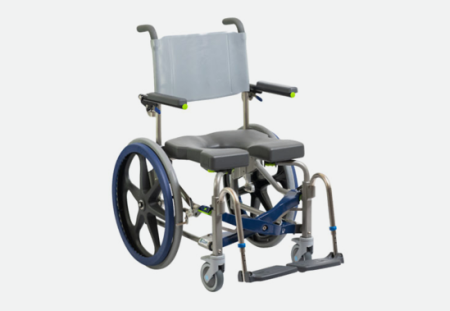

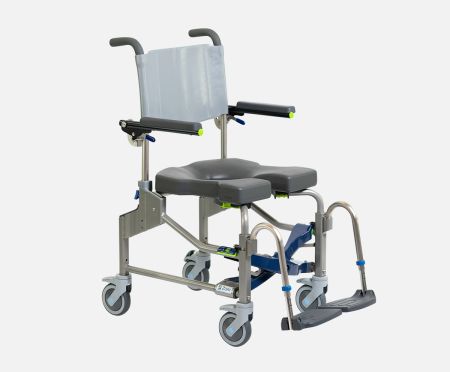

The Züm-AP/SP are the first folding frame mobile shower commode chairs that offer the rigidity that you would expect from a premium product. The unique cross brace design allows the Züm to fit fully over a toilet for optimal alignment of the aperture with the toilet bowl. Standard features include:

  • Crossbrace with low pivot point and forward arch allows Züm to be positioned fully over the toilet
  • Crossbrace lock-down system and rear seat support tube provide unparalleled rigidity
  • 18”W aluminum frame – fits over most standard toilets
  • Unrestricted front and side access
  • 17 standard seats + custom (with IPAS)
  • Removable back support
  • Flip-up arm supports with optional lock kit
  • 22” or 24” wheels available for the Züm-SP model
  • 2” fore/aft rear wheel adjustment (fine tunes center-of-mass position for SP model)
  • Quick-Release Axles are standard
  • BYOW (Bring Your Own Wheels) custom axle receivers to allow use of client’s own wheelchair wheels

Motion Composites is the exclusive Canadian distributor of RAZ Design

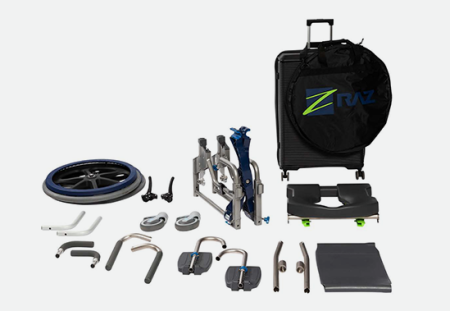

The Züm Travel Kit options are available now. The Kits consist of:

  • The suitcase, for travel and storage purposes:
    • Seat bag
    • Parts bag
    • Foam insert
  • Wheel Bag (Züm-SP, can be omitted)
  • Quick Release Wheel Locks (Züm-SP)
  • Toolless, removable casters
  • Modular back support with:
    • Molded vinyl upholstery
    • Removable, wraparound arms
    • Removable cane handles

All components are removable without tool

Find a provider

FEATURES

  • Contoured for pressure reduction and pelvic stability
  • Soft integral-skin foam for comfort and durability
  • Available with open or bridged front
  • Available sizes: 18″wx17″d, 18″wx20″d
  • Removable for transfers and cleaning
  • Swing in and out easily
  • Flip-up footplate
  • Adjust for leg length without tools
  • Available in regular length 16″-20½” and extended length 18″-22½”
  • Provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
  • Allows centering of the aperture (opening) around the users’ its
  • Seat locks in place for transfers
  • Removes easily for cleaning
  • Optional spacers for anterior or posterior seat angle adjustment

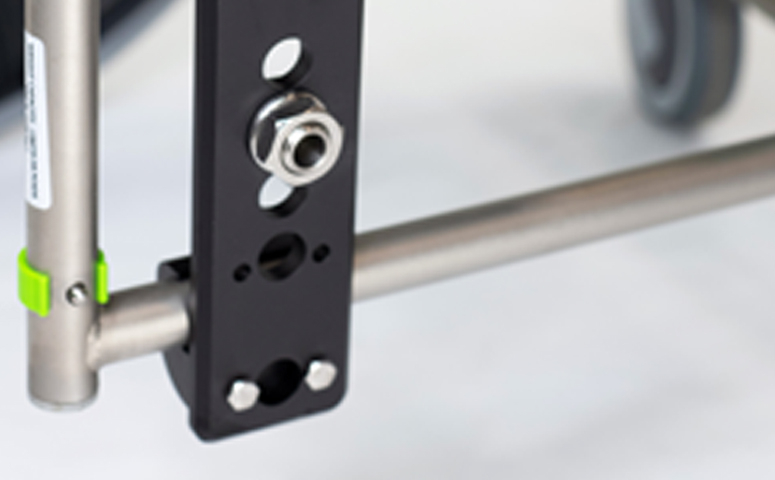

  • Provide 1.5″ of horizontal adjustment for optimum user / toilet bowl access
  • Allow use of 22″ or optional 24″ rear wheels
  • Injection-molded pan is designed for function
  • Includes a lid for splash and odor control
  • Wide handle angled at 45 degrees provides better ergonomics
  • Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
  • Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
  • Fits in a standard autoclave and Arjo Tornado Washer

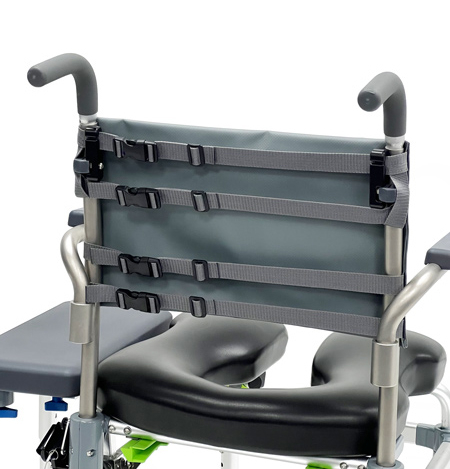

New Back Height and Tension-Adjustable Upholstery for the Züm

Züm can now be ordered with 18”W x 15”H or 18”W x 17”H backs.
Both come with wrap-around, removable arm supports and detachable push handles.

When optional Tension-Adjustable Upholstery is ordered, Upholstery Retention Clips are supplied, which keeps the upholstery from sagging.
These clips also provide support for a chest belt.

More

We offer a wide range of accessories and seat options.

The Raz Bathing and Toileting Systems can be ordered through our order forms or simply by reaching out to your local provider.
